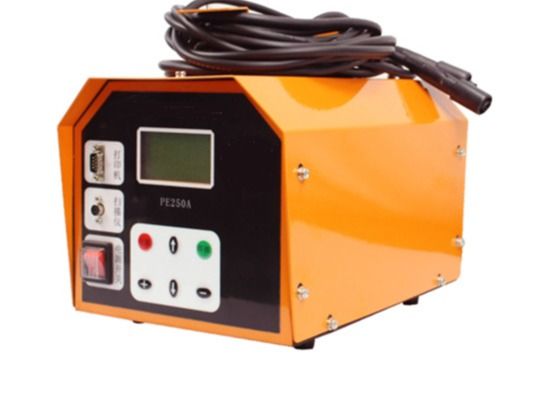

Electric Fusion Welding Machine For Ppr Pe Pipe Fittings

Electric Fusion Welding Machine For Ppr Pe Pipe Fittings
Electric Fusion Welding Machine For Ppr Pe Pipe Fittings Electric Fusion Welding Machine For Ppr Pe Pipe Fittings

Large Image :  Electric Fusion Welding Machine For Ppr Pe Pipe Fittings

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: HTXG
Certification: ISO9001
Model Number: 250A
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD450.00-600.00/SET
Packaging Details: Polywood packing
Delivery Time: 40working days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/momth

Electric Fusion Welding Machine For Ppr Pe Pipe Fittings

Description
Product Name: Electro Fusion Welding Machine For Ppr Pe Pipe Fittings Hdpe Pe Fusion Electro Machine Voltage: 220V
Power: 2.5kw Output Current: 10-50A
Packing Size: 41*29*33cm Weight: 20KG
High Light:

220V Electric Fusion Welder

,

Pe Pipe Electric Fusion Welding Machine

,

2.5kw Electric Fusion Welding Machine

Electro Fusion Welding Machine For Ppr Pe Pipe Fittings Hdpe Pe Fusion Electro Machine



Description

This hydraulic butt fusion welding machines is able to weld pipes and fittings with material pe pipe,hdpe pipe , operation easily and suitable for any complex work condition. It consists of basic frame, hydraulic unit, planning tool, heating plate, support for planning tool & heating plate, and optional parts.



Technical Parameters

Specifications& Models 250A 350A
Welding Range (mm) 20-200 20-315
Input Voltage AC220V+/-20%
50-60Hz Single phase
AC220V+/-20%
50-60Hz Single phase
Outpower Power 2.5Kw 3.5Kw
Output Voltage 10-55V 10-65V
Output Current 50A 60A
Work environment -15-45℃ Relative humidity 80% -15-45℃ Relative humidity 80%
Protection grade IP54 IP54
Load factor 60% 60%
Package size(cm) 41*29*33cm 41*29*33cm
Weight 20KGS 22KGS



Electric Fusion Welding Machine For Ppr Pe Pipe Fittings 0



Performance and Features:



  •  Suitable for welding of plastic pipes and fittings made of HDPE PVDF and MPP, and can be operated in any complex work condition.
  •  Consists of basic frame, planning tool, heating plate and support for planning tool and heating plate.
  •  Real-time data printing, record function and USB port available.
  • Serving as system-default welding standard, moreover customized welding standard available.
  • Standard is equipped single clamps for enhancing alignment accuracy.
  • Focus on humanized design and detailed operation reminder enables operator to easily familiar with welding process.



Our advantage:

  • This equipment adopts microcomputer intelligent control, which can realize 6-stage welding, constant voltage and constant current two control modes can be freely converted to adapt to different pipe fittings. Different welding parameter input requirements.
  • Real-time display of output voltage/current and other parameters during the entire welding process, real-time online detection of various possible abnormal conditions, automatic faults Stop welding and alarm.
  • A more user-friendly function of "temperature compensation" is added, and the welding machine can automatically adjust the welding time according to the ambient temperature detected by the built-in temperature sensor.
  • Can store on-site data, 6 segments can store 250 pieces of welding record information, USB data interface, convenient for you to store and print real-time welding record information.
  • This equipment complies with the international standard of ISO12176 electrofusion welding machine barcode and can automatically identify barcode automatic welding.

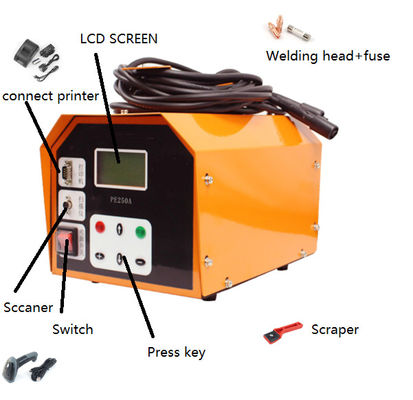

  • Humanized interface design, large LCD screen displays both pictures and texts, which is more convenient to operate.



Electric Fusion Welding Machine For Ppr Pe Pipe Fittings 1



Our service:

1) We offer 1 year warranty and free spare parts. (Except for wearing parts)

2) We offer voltage and frequency of motor customization service, such as 220v 60Hz.

3) We can put your LOGO on machine plate or packing (need your authorization on brand)

4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
