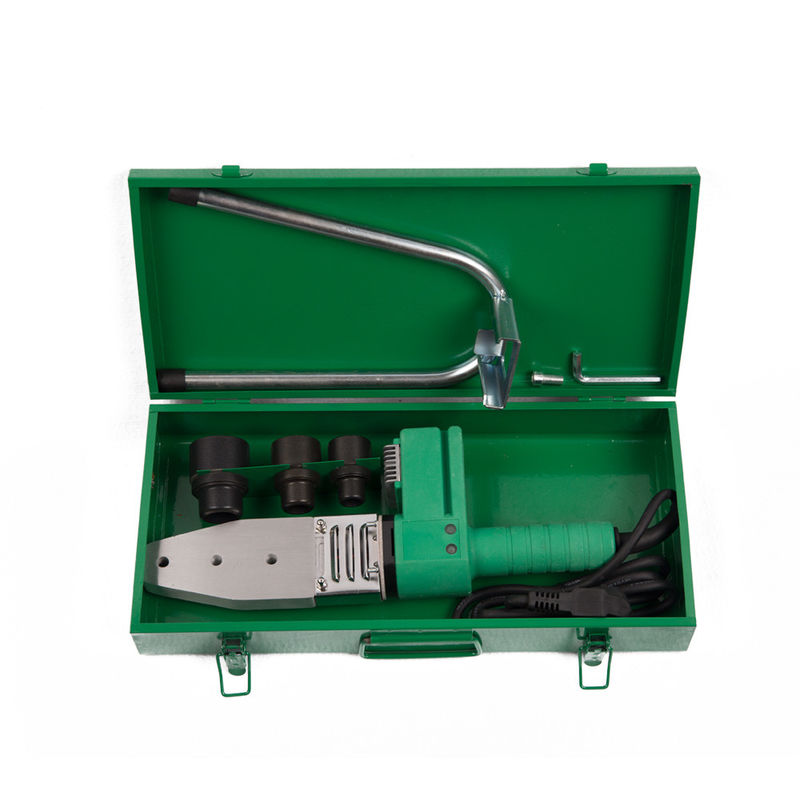

PVC PPR 20mm To 32mm Hot Melt HDPE Welding Machine

HT32-8 20 - 32mm Hot Melt Pvc Ppr Pipe Fushion Pipe Welders Plastic Pipe Welding Machine

Description

Product name: wholesale price high quality durable ppr plastic pipe welding machine

ppr welding machine Instruction for use

1. Apply die head

Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.

2. Power on

Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.

Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.

3. Fusion pipes

Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached and insert

Portable easy operation pipe welders 20-63mm Hot melt plastic pipe ppr welding machine butt welders made in china

Feature

• We have 100% inspection to strictly control the quality of the thermostat.
• It has double tube design,can has fast heating, saving time and effort.
• Thicken panel can store heat and improve work efficiency.
• Anti-scalding non-slip handle.
• Iron box packaging, durable and not deformed.
• Support OEM brand customization.
• Has heating indicator.
• Black gold die head, not easy to stick to the tube.
• Dual temperature and dual control speed.
• U-shaped bracket, enhanced load-bearing effect, stable work.

Instruction for use

1. This receives inserts the type to melt the welding machine is Φ20-160,

2. The specification has 20-160 .Take the pipe Fixes in the left side jig, Remains according to the actual situation takes the suitable length, In fitting fixed right margin adjustable shelf.

3. According the pipe’s size, Chooses the same model the mold, Left side of the hot plate lays aside the concave shape mold, Right margin lays aside the raised mold, Uses again M8×40 the screw fixes in the circular telegram hot plate,

4. The circular telegram heats up, Might adjust temperature controls moves 250±10, the red candle is bright when expresses the heating, the red candle extinguishes, the green light to be bright time then operates.

5. When the hot plate green light is bright is the operation, when fitting and tubing melting,

6. Through shakes the hand wheel, carries on the welding the tubing and the fitting, after treating the size arriving, lets its heat absorption the approximately 30 seconds then.

7. The rapid withdrawal welding die head, to receive the tubing and the fitting compression cooling to the room temperature then, the welding finished.

Service

1. High Quality Products with Competitive Price.

2. 7*24 Hour After-Sales Service with Free Technology Support.

3. All of our products support OEM, lead time within 40 days.

4. Full Set of Products Supply Chain.

FAQ

Q1: Why choose us?

We are a professional manufacturer of pipe hot melt welding machine and pipe scissors.

Q2: Do you provide samples?

Yes, we could offer the sample for free of charge but freight is not included.

Q3:How long is your delivery time?

Generally it’s 3-7days if the goods are in stock, or it’s 25-30days if the goods are not in stock, and it vary a little according to quantity.

Q4: What is your terms of payment?

A: Payment under USD1,000, 100% T/T in advance.

B: Payment more than USD1,000, 30% T/T in advance, balance before shipment.

Q5: What is your packing?

A: usually by carton, and can be packed as your require.
