Product Details:
|
| Product Name: | 315mm Electrofusion Welding Machine For Polyethylene Plastic Pipe | Voltage: | 220V |
|---|---|---|---|
| Power: | 3.5kw | Current: | 60A |
| Frequency: | 50hz Or 60hz | Relative Humldit: | 80% |
| Protectlon Class: | IP54 | Packing Size: | 410*290*330mm |
| Weight: | 22KG | ||
| High Light: | 315mm Electrofusion Welding Machine,Polyethylene Pipe Electrofusion Welders,Plastic Pipe Electrofusion Welding Machine |
||
315mm electrofusion welding machine for polyethylene plastic pipe
Description
Generally, we use an electrofusion welding machine to heat the resistance wire embedded in the inner cavity of the electrofusion pipe fitting, and use its heating energy to connect the PE pipe fitting and the pipe. After the gaps on both sides of the pipe are closed, the melt in the interface melting zone will generally be under the action of high temperature and working pressure. In the case of the specified specification of entanglement, the interface after natural cooling must have the welding strength of electric welding to produce a safe and reliable electric welding connection of the pipe connection.
Technical Parameters
| Model | 350A |
| Welding material | polyethylene plastic pipe |
| Welding range | DN20-DN315 |
| Supply Voltage | 220V 50Hz or 60Hz |
| Constant voltage/output voltage | 10V-65V |
| Max. output power | 3.5KW |
| Ambient temperature | -15º~+45º |
| Relative humidity | ≤80% |
| Weight | 22KG |
Application
Electrofusion welding machine using true RMS control, is mainly used in connection of gas or water polyethylene (PE) pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
Features
1. Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection,
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3. Wide voltage Input: AC170V - 270V, adapt to site grid,
4. High brightness LCD display, Chinese or English operation, user-friendly HMI,
5. Output voltage / current / heat, past welding time / remaining time, welding status, browser on any input data,
6. Suppression of harmonic output,
7. Protection of cable moving parts with flexible connection,
8. IP rating 54, guaranteed normal use in harsh environment.

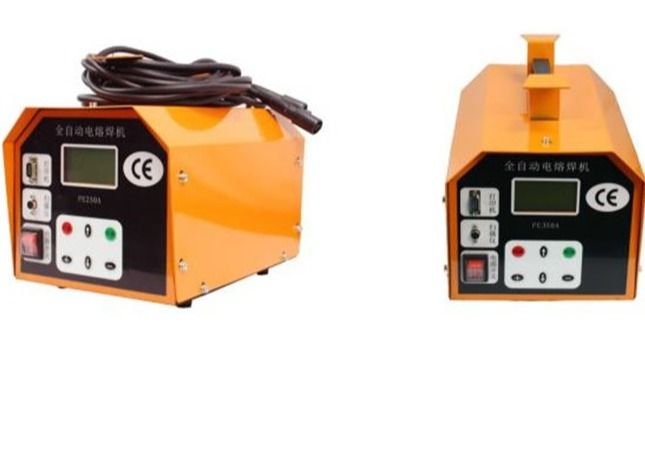

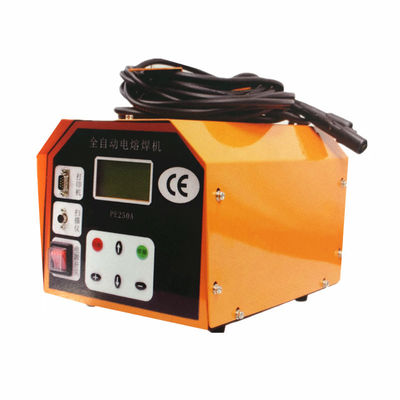

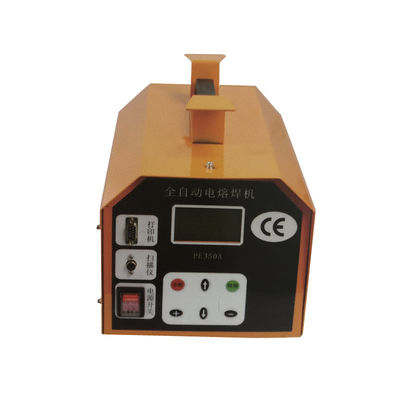

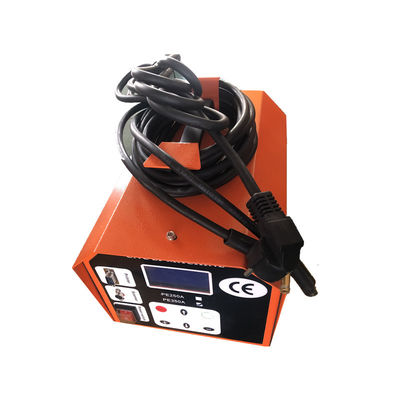

Product details
Details makes perfect
Our advantage:
1. High - level MCU is used as control core, with abundant parameter setting, measuring and perfect protective function.
2. Wide power supply and voltage input, suitable for filed electrical network level.
3. High precision control of electrial stability and time, insuring welding quality.
4. Swift output response time when power supply breaks, high stability.
5. Many programmable welding functions, suitable for welding requirement for various fittings.
6. Flexible welding parameter input mode; manual input through keyboard or bar cod scanning input.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
