Product Details:
|

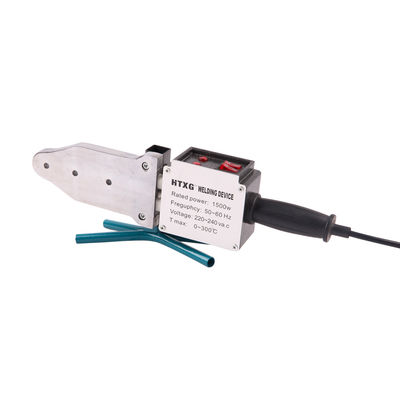

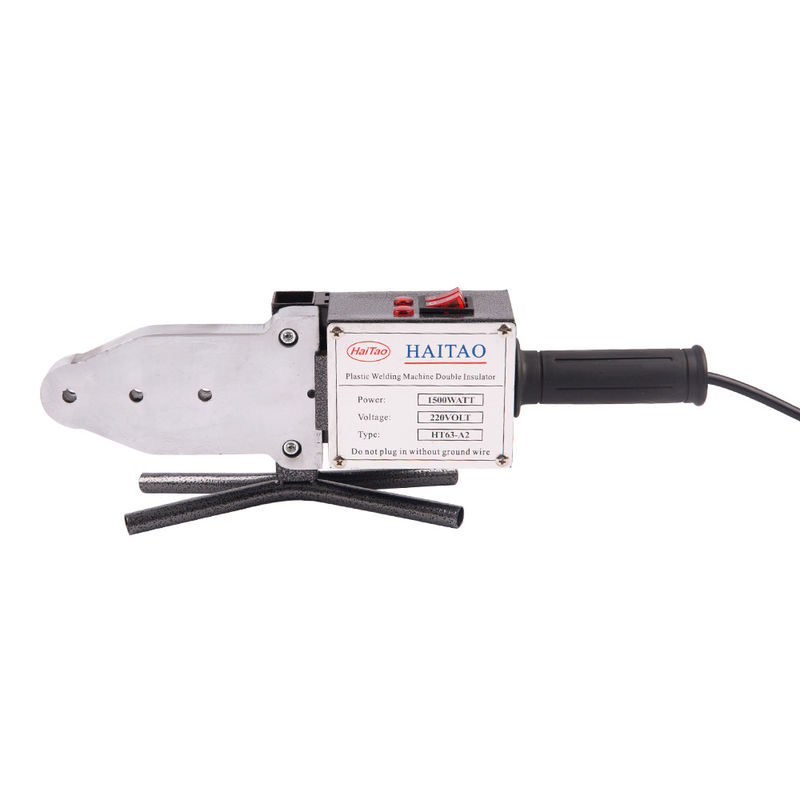

Product Name: | Hotmelt Onsite Plastic Pipe Welder PE PPR PB PVDF HDPE 700w-1500w Digital Poly Pipe Welding Machine For Sale | Power: | 220v |
---|---|---|---|
Application: | Various Ppr Pe Pipes | Condition: | New |
Weight: | 28/27KG(10PCS) | Dimension: | 50.5X29.5X52cm |
OEM: | OEM Acceptable | Advantage: | Digital |
Working Temperature: | 0-300℃ | Key Words: | Digital Plastic Pipe Welding Machine |
High Light: | Hotmelt Onsite Plastic Pipe Welder,Hot Melt OnSite Plastic Pipe Welder,1500w Poly Pipe Welding Machine |
Description
Portable easy operation pipe welders 20-63mm Hot melt plastic pipe ppr welding machine butt welders made in china
Instruction for use
1. This receives inserts the type to melt the welding machine is Φ20-160,
2. The specification has 20-160 .Take the pipe Fixes in the left side jig, Remains according to the actual situation takes the suitable length, In fitting fixed right margin adjustable shelf.
3. According the pipe’s size, Chooses the same model the mold, Left side of the hot plate lays aside the concave shape mold, Right margin lays aside the raised mold, Uses again M8×40 the screw fixes in the circular telegram hot plate
Feature
We have 100% inspection to strictly control the quality of the thermostat.
It has double tube design, can has fast heating, saving time and effort.
Thicken panel can store heat and improve work efficiency.
Anti-scalding non-slip handle.

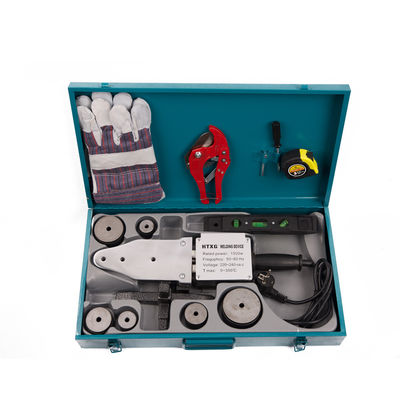

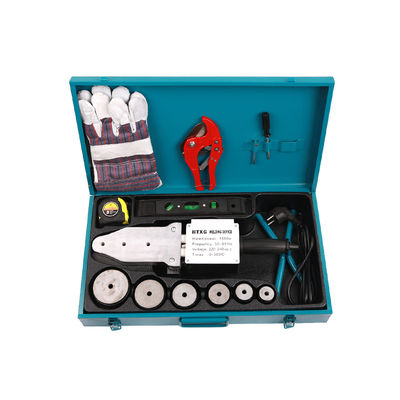

Iron box packaging, durable and not deformed.
Support OEM brand customization.
Has heating indicator.
Black gold die head, not easy to stick to the tube.
Dual temperature and dual control can speed efficiency.
The front-end independent die head easily solves the corner takeover.
pplicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Home Use, Food Shop, Food & Beverage Shops |
Place of Origin | Zhejiang,China |
After-sales Service Provided | Online support, Video technical support |
Warranty | 1 Year |
Voltage | 220±10% |
Power | 750w-1500w |
Frequency | 50-60HZ |
Welding Area | diameter20-63mm |
Usage | pvc ppr pipe welding |
Product name | Ppr pvc pipe fittings heating tools hot melt welding machine |
Application | PVC PPR PB pipe welding |
Material | Aluminum Alloy+nylon/abs |
Welding diameter | 20-63mm |
Working temperature | 0-300℃ |
Certificate | CE ISO |
Color | Green Black Yellow |
Welding material | PE PPR PP PVDF |
MOQ |
10 |
OEM | OEM Acceptable |
Product name: wholesale price high quality durable ppr plastic pipe welding machine
ppr welding machine Instruction for use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached and insert
What is plastic welding?
Heat generation is used to bond two or more individual pieces of thermoplastic materials to be joined to form a welding joint, sometimes also called the joint area. Typically, heat is applied at the edges in order to melt the edges of the plastic until the edges can be merged together.
Plastics welding is achieved in three phases, surface preparation, application of heat and pressure and cooling.
Many plastics can be welded such as acrylic or polymethy methacrylate (PMMA), polycarbonate (PC), polyethylene (PE), polypropylene (PP), polyethylene terephthalate (PETE or PET), polyvinyl Chloride (PVC), acrylonitrile-butadiene-Styrene (ABS).
Considerations include welding equipment such as hot air welding tools, plastic welding rods, extruders etc… and then heating and cooling time, pressure... Included in most plastic welding processes are devices that hold the plastics components together so that a complete bond can be formed as the heat is added to the weld joint.
Plastics welding is used for the joining of plastics pieces but also to repair cracks.
FAQ
Q1: Why choose us?
We are a professional manufacturer of pipe hot melt welding machine and pipe scissors.
Q2: Do you provide samples?
Yes, we could offer the sample for free of charge but freight is not included.
Q3: How long is your delivery time?
Generally it’s 3-7days if the goods are in stock, or it’s 25-30days if the goods are not in stock, and it vary a little according to quantity.
Q4: What is your terms of payment?
A: Payment under USD1,000, 100% T/T in advance.
B: Payment more than USD1,000, 30% T/T in advance, balance before shipment.
Q5: What is your packing?
A: usually by carton, and can be packed as your require.
