Product Details:
|
Product Name: | High Efficiency HT32-3 Hdpe Welder For Machinery Repair | Power: | 220v |
---|---|---|---|
Application: | Construction Industry | Condition: | New |
Weight: | 18kg(10pcs) | Dimension: | 38*34.5*45cm |
OEM: | OEM Acceptable | Usage: | PE PVC PPR Pipe |
Material: | Aluminum Alloy Body | G.W./N.W.: | 10pcs,22/21 KGS |
High Light: | OEM Acceptable Hdpe Welder,Hdpe Welder For Machinery Repair,High Efficiency Hdpe Welder |

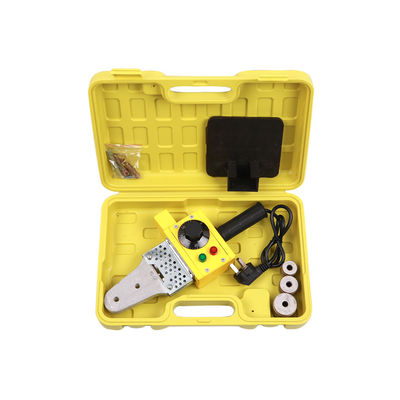

High efficiency HT32-3 hdpe welder for Machinery Repair
Description
The main electrical apparatus elements are best of china, many are imported from abroad.
3. Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.Thicken panel can store heat and improve work efficiency.Thicken/Double layer Teflon coatings makes it working better when welding the plastic pipe and fittings
Feature
Black gold die head, not easy to stick to the tube.
Dual temperature and dual control can speed efficiency.
U-shaped bracket, enhanced load-bearing effect, stable work.
The front-end independent die head easily solves the corner takeover.There are different size and operation for meeting different customer’sPower on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating. requirement.
Item no. | Welding range | Rated Power | Working temp. | G.W./N.W. | Packaging |
HT32-2 | 20-32 mm | 800W | 0-300° | 10pcs,22/21 KGS | 38*34.5*45cm |
HT32-TT | 20-32 mm | 800W | 0-300° | 10pcs,22/21 KGS | 38*34.5*45cm |
HT63-11 | 20-32 mm | 800W | 0-300° | 10pcs,28/27 KGS | 40*39*45cm |
HT63-3 | 20-63 mm | 800W | 0-300° | 10pcs,31/30 KGS | 40*36*45cm |
HT63-3A | 20-63 mm | 800W | 0-300° | 10pcs,31/30 KGS | 40*36*45cm |
HT63-12 | 20-63 mm | 1500W | 0-300° | 5pcs,23/22 KGS | 48.5*29*55.5cm |
HT63-7 | 20-63 mm | 800W | 0-300° | 10pcs,30/29 KGS | 41*40.5*48.5cm |
HT63-10 | 20-63 mm | 800W | 0-300° | 5pcs,27/26 KGS | 46.5*29/52cm |
HT110 | 75-110 mm | 1200W | 0-300° | 5pcs,25/24 KGS | 56.5*43.5*31cm |
HT110-10 | 75-110 mm | 1200W | 0-300° | 5pcs,31/30 KGS | 46.5*33.5*38cm |
HT110-6 | 75-110 mm | 750-1500W | 0-300° | 5pcs,31/30 KGS | 46.5*29.5*52cm |
ppr welding machine Instruction for use
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.The temperature can be controlled by double heating element
Moulds
Thicken/Double layer Teflon coatings makes it working better when welding the plastic pipe and fittings
Content

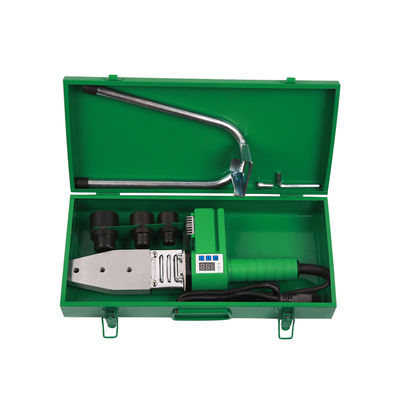

User manual, screws, screw driver, hexagonal spanners, cutter, holder, tape, spirit level, glove. Digital series add a digital controller and screen for improving the accuracy of the heating temperature. The temperature range can set as demand of different plastic pipes
FAQ
Q1: Why choose us?
We are a professional manufacturer of pipe hot melt welding machine and pipe scissors.
Q2: Do you provide samples?
Yes, we could offer the sample for free of charge but freight is not included.
Q3:How long is your delivery time?
Generally it’s 3-7days if the goods are in stock, or it’s 25-30days if the goods are not in stock, and it vary a little according to quantity.
Q4: What is your terms of payment?
A: Payment under USD1,000, 100% T/T in advance.
B: Payment more than USD1,000, 30% T/T in advance, balance before shipment.
Q5: What is your packing?
A: usually by carton, and can be packed as your require.
