Product Details:
|
| Product Name: | High Quality Butt Fusion Plastic Pipe Hdpe Pipe Joint Hydraulic Pipe Welding Machine Price SHT200-2/4(A) | Heating Plate Max. Temp: | 270℃ |
|---|---|---|---|
| Total Heating Power: | 2.6 Kw/3.2Kw | Working Range: | 63-200mm |
| Pipe Size: | 63, 75, 90, 110, 125, 140, 160, 180, 200 | Temperature Bias: | “+/-5° |
| Power Of Heating Plate:: | 0.8 Kw/1.2Kw | 2(A) Packing Size: | 67*47*53 Cm |
| 2(A) G.W./N.W.:: | 50/44 Kgs | 4(A) Packing Size:: | 74*59*56 Cm |
| 4(A) G.W/N.W: | 52/46KGS | ||
| High Light: | Plastic Hdpe Pipe Fusion Welding Machine,Hydraulic Pipe Fusion Joint Welding Machine,Butt Fusion Welding Machine 200mm |
||

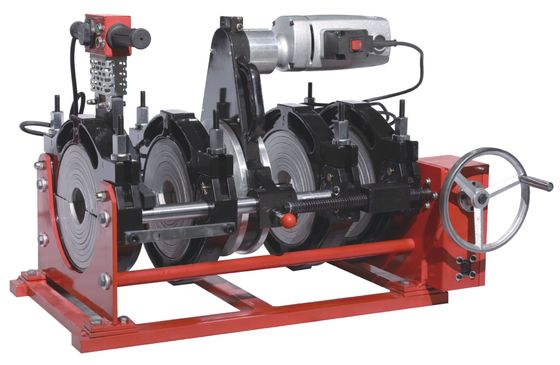

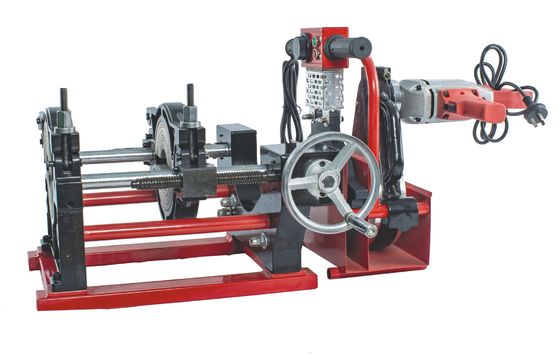

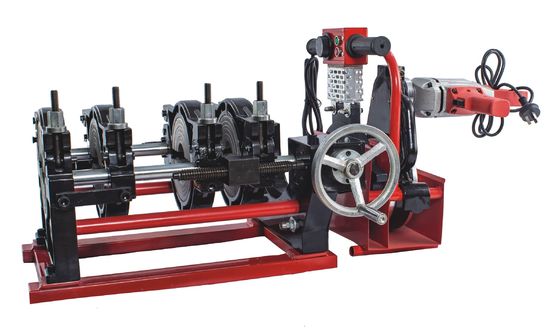

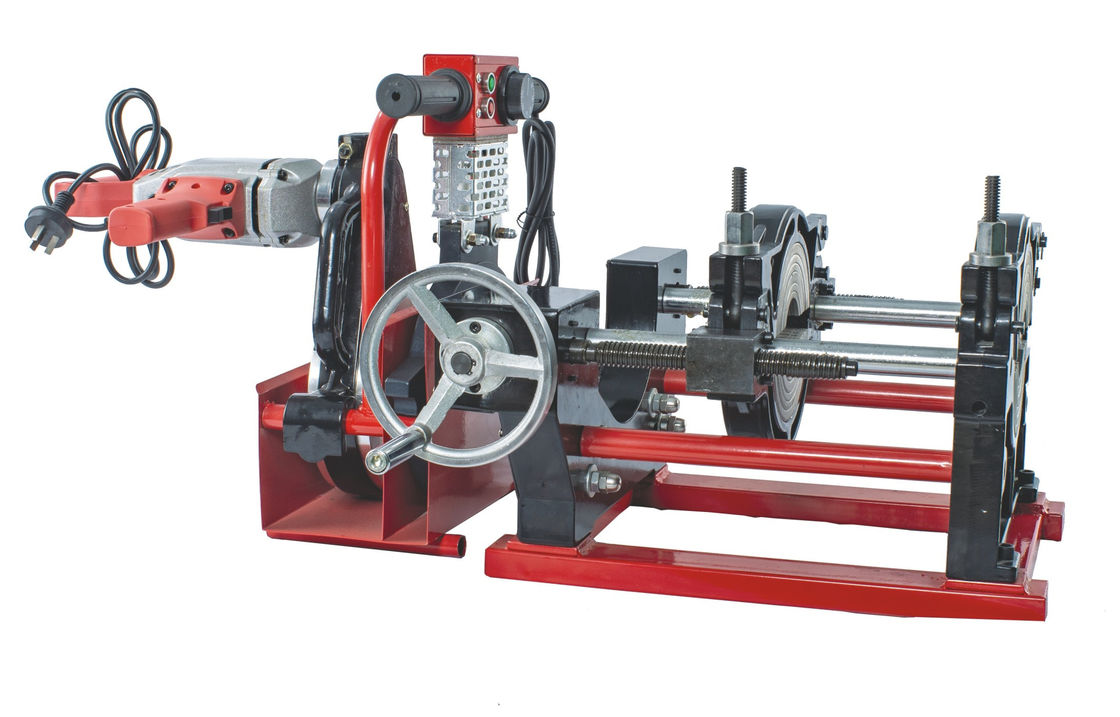

High quality Butt fusion plastic pipe hdpe pipe joint hydraulic pipe welding machine price SHT200-2/4(A)
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.
Butt Fushion Welding Machine Technical data:
| item | SHT160-2/4(A) | SHT200-2/4(A) |
| Working Range | 63-160mm | 63-200mm |
| Caliber (mm) | 63, 75, 90, 110, 125, 140, 160 | 63, 75, 90, 110, 125, 140, 160, 180, 200 |
| Heating board max temp. | 270 °C | 270 °C |
| Temperature bias | “+/-5° | “+/-5° |
| Heating plate power | 1.6 Kw | 1.8 Kw |
| Power of Heating plate: | 0.8 Kw | 0.8 Kw/1.2Kw |
| Total power | 2.4 Kw | 2.6 Kw/3.2Kw |
| 2(A) G.W./N.W.: | 35/32 kgs | 50/44 kgs |
| 2(A) Packing size: | 55*47*52 cm | 67*47*53 cm |
| 4(A) G.W./N.W.: | 47/42 kgs | 52/46 kgs |
| 4(A) Packing size: | 68*54*53 cm | 74*59*56 cm |
Other name:
200mm manual automatic poly Hydraulic Butt Fusion plastic PE Pipe hot melt Welding Machine HDPE Pipe Welder price list
Outlet great quality hdpe butt fusion welding machine 63mm-200mm hdpe welding machine
Features:
The machine should be operated on a dry area. The protective measures should be adopted when it's used in rain or on wet ground. The machine is operated by 220v±10%, 50Hz, if extended wire should be used, it should have enough lead section according to its length.With enriched industrial experience and knowledge, we are offering a wide assortment of HDPE Pipe Welding Machine.
Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine
1. Before operation, all equipment parts shall be placed on a stable and dry place.
2. Confirm that the power supply used meets the requirements of the equipment, the equipment is in good condition, and the electrical circuit is not damaged; the detection indicator works normally, the milling cutter blade is sharp, and the parts and operating tools are complete.
3. Replace the required fixture according to the outer diameter of the welded pipe.
Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine
Application
Company profile
Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in the production of various specifications of PPR hot melt machines (plastic pipe fusion welders), scissors, butt welders, and pressure test pumps. Since the establishment of the factory, our factory have always paid great attention to the research and development of new products and the training of professional and technical staff, and we are constantly exploring and innovating, and introducing advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous praise from the industry. Our factory adheres to the principle of honesty, friendliness, mutual benefit, and the business tenet of surviving on quality, development by reputation, and occupying the market with price. Facing new and old customers, we have established a complete after-sales service network system, and our products are exported to large, medium and small cities in China and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City, 32 kilometers away from Hangzhou Xiaoshan International Airport and 2 kilometers away from the exit of HangJinQu Highway (Diankou, Ciwu). The transportation is convenient and the environment is beautiful. We sincerely welcome people of insight from all walks of life to visit, cooperate and develop together.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
