Product Details:
|
| Product Name: | China Factory Polyethylene Pipe Butt Welder SHT200-2/4(A) | Heating Plate Max. Temp: | 270℃ |
|---|---|---|---|
| Power Of Heating Plate:: | 0.8 Kw/1.2Kw | Total Heating Power: | 2.6 Kw/3.2Kw |
| Working Range: | 63-200mm | Pipe Size: | 63, 75, 90, 110, 125, 140, 160, 180, 200 |
| Temperature Bias: | “+/-5° | 2A Dimension: | 67*47*53 Cm |
| 2(A) G.W./N.W.:: | 50/44 Kgs | 4(A) Packing Size:: | 74*59*56 Cm |
| 4(A) G.W./N.W.:: | 52/46 Kgs | ||
| High Light: | 1.2Kw Polyethylene Pipe Butt Welder,0.8Kw Polyethylene Pipe Butt Welder |
||

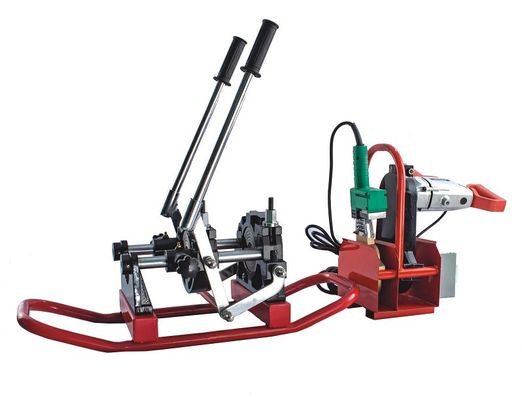

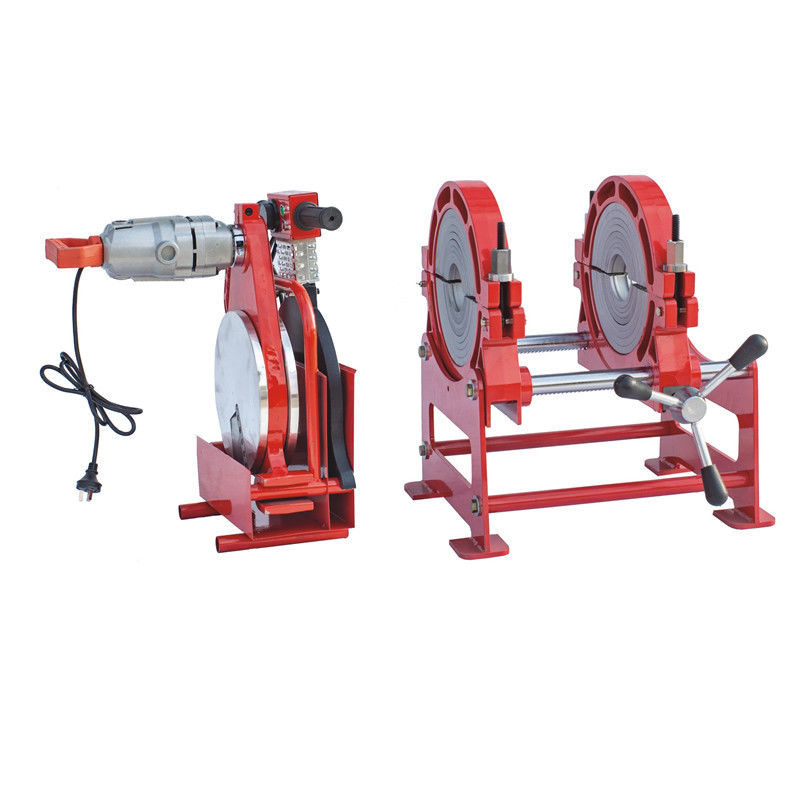

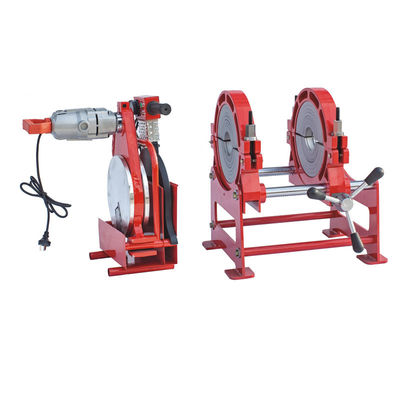

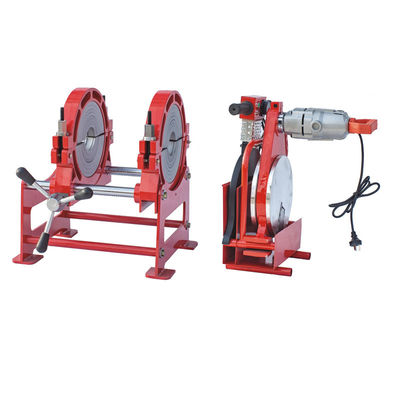

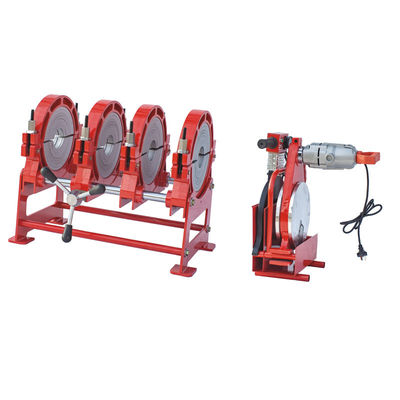

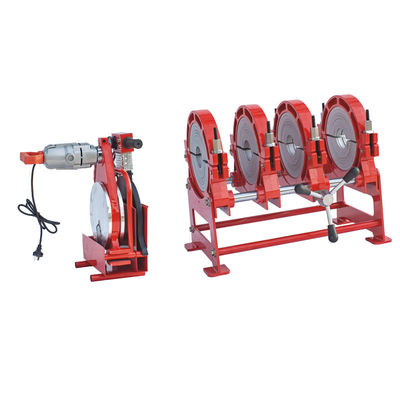

China factory polyethylene pipe butt welder SHT200-2/4(A)
The machine is used to weld pipes made from PE, PP, PVDF and cannot be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in. Lower start-up pressure make the small diameter pipe weld more reliable.Don't use the machine in a place with potential hazard of explosion
Butt Fushion Welding Machine Technical data:
| item | SHT200 -2/4(A) |
| Working Range | 63-200mm |
| Caliber (mm) | 63, 75, 90, 110, 125, 140, 160, 180, 200 |
| Heating board max temp. | 270 °C |
| Temperature bias | “+/-5° |
| Heating plate power | 1.8 Kw |
| Power of Heating plate: | 0.8 Kw/1.2Kw |
| Total power | 2.6 Kw/3.2Kw |
| 2(A) G.W./N.W.: | 50/44 kgs |
| 2(A) Packing size: | 67*47*53 cm |
| 4(A) G.W./N.W.: | 52/46 kgs |
| 4(A) Packing size: | 74*59*56 cm |
Other name:
hdpe heat fusion welding machine
polyethylene fusion welding machine
pe pipe butt fusion
hdpe pipe jointing digital heater
polyethylene pipe butt welder
pipe fusion welding tool
poly pipe fusion welder
200mm manual automatic poly Hydraulic Butt Fusion plastic PE Pipe hot melt Welding Machine HDPE Pipe Welder price list
Outlet great quality hdpe butt fusion welding machine 63mm-200mm hdpe welding machine
Features:
Hold the door handle when obtaining the milling cutter disc. The milling cutter disc can only be rotated when it is installed on the welding frame. Do not arbitrarily adjust the toggle switch of the milling cutterHumanized interface design, large LCD screen displays both pictures and texts, which is more convenient to operate.
Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine
1. Before operation, all equipment parts shall be placed on a stable and dry place.
2. Confirm that the power supply used meets the requirements of the equipment, the equipment is in good condition, and the electrical circuit is not damaged; the detection indicator works normally, the milling cutter blade is sharp, and the parts and operating tools are complete.
3. Replace the required fixture according to the outer diameter of the welded pipe.
Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine
Application
Company profile
Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in the production of various specifications of PPR hot melt machines (plastic pipe fusion welders), scissors, butt welders, and pressure test pumps. Since the establishment of the factory, our factory have always paid great attention to the research and development of new products and the training of professional and technical staff, and we are constantly exploring and innovating, and introducing advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous praise from the industry. Our factory adheres to the principle of honesty, friendliness, mutual benefit, and the business tenet of surviving on quality, development by reputation, and occupying the market with price. Facing new and old customers, we have established a complete after-sales service network system, and our products are exported to large, medium and small cities in China and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City, 32 kilometers away from Hangzhou Xiaoshan International Airport and 2 kilometers away from the exit of HangJinQu Highway (Diankou, Ciwu). The transportation is convenient and the environment is beautiful. We sincerely welcome people of insight from all walks of life to visit, cooperate and develop together.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
