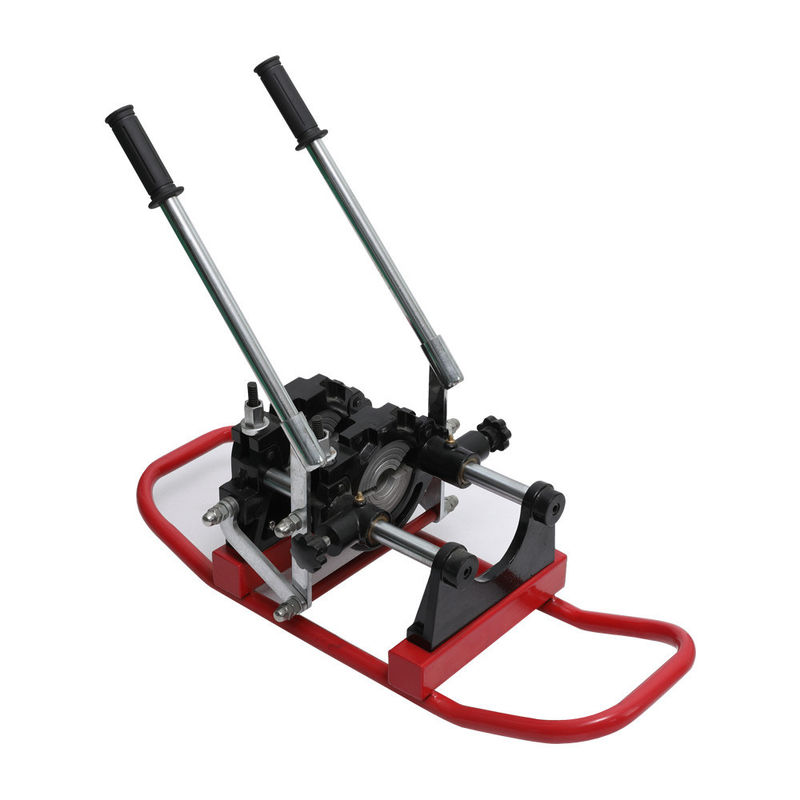

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works
Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works

Large Image :  Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: HTXG
Certification: ISO9001
Model Number: SHT200-2/4(A)
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: POLYWOOD
Delivery Time: ONE MONTH
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/momth

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works

Description
Product Name: China Factory Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works Heating Plate Max. Temp: 270℃
Total PowHeatinger: 2.6 Kw/3.2Kw Dimension: 67*47*53 Cm
Ng WorkiRange: 63-160mm Pipe Size: 63, 75, 90, 110, 125, 140, 160, 180, 200
Temperature Bias: “+/-5° 2(A) G.W./N.W.:: 50/44 Kgs
Power Of Heating Plate:: 0.8 Kw/1.2Kw 4(A) Packing Size:: 74*59*56 Cm
High Light:

2.6Kw Polyethylene Pipe Butt Welder

,

Construction Works Polyethylene Pipe Butt Welder

China factory polyethylene pipe butt welder SHT200-2/4(A) for Construction works

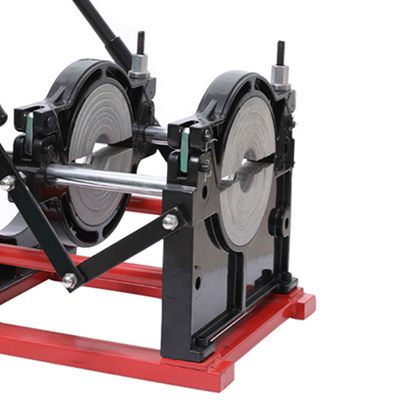

The main body supports and center the plastic pipes with two fixed and two movable clamps. The machine is used to weld pipes made from PE, PP, PVDF and cannot be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in. The lift of the machine can take the milling cutter and heating plate to the designated spot quickly.Low starting pressure and high reliable seal structure.



Butt Fushion Welding Machine Technical data:

item SHT160
-2/4(A)
SHT200
-2/4(A)
SHT250-2/4(A)
Working Range 63-160mm 63-200mm 90-250mm
Caliber (mm) 63, 75, 90, 110, 125, 140, 160 63, 75, 90, 110, 125, 140, 160, 180, 200 90, 110, 125, 140, 160, 180, 200, 225, 250
Heating board max temp. 270 °C 270 °C 270 °C
Temperature bias “+/-5° “+/-5° *+/-5°C
Heating plate power 1.6 Kw 1.8 Kw 2.2 Kw
Power of Heating plate: 0.8 Kw 0.8 Kw/1.2Kw 1.45Kw/2.2Kw
Total power 2.4 Kw 2.6 Kw/3.2Kw 3.65Kw/4.7 Kw
2(A) G.W./N.W.: 35/32 kgs 50/44 kgs 83/70kg
2(A) Packing size: 55*47*52 cm 67*47*53 cm 76*55*58 cm
4(A) G.W./N.W.: 47/42 kgs 52/46 kgs 110/95kg
4(A) Packing size: 68*54*53 cm 74*59*56 cm 90*67*54 cm


Other name:

China factory polyethylene pipe butt welder SHT200-2/4(A) for Construction works


Features:

Wear anti-cutting gloves.Pay attention to the safety precautions of the actual operating staff. After the welding is completed, it should be placed in a special heating plate support frame.Suitable for welding of plastic pipes and fittings made of HDPE PVDF and MPP, and can be operated in any complex work condition.
Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  0


Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine

1. Before operation, all equipment parts shall be placed on a stable and dry place.
2. Confirm that the power supply used meets the requirements of the equipment, the equipment is in good condition, and the electrical circuit is not damaged; the detection indicator works normally, the milling cutter blade is sharp, and the parts and operating tools are complete.
3. Replace the required fixture according to the outer diameter of the welded pipe.

Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  1
Application

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  2

Company profile

Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in the production of various specifications of PPR hot melt machines (plastic pipe fusion welders), scissors, butt welders, and pressure test pumps. Since the establishment of the factory, our factory have always paid great attention to the research and development of new products and the training of professional and technical staff, and we are constantly exploring and innovating, and introducing advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous praise from the industry. Our factory adheres to the principle of honesty, friendliness, mutual benefit, and the business tenet of surviving on quality, development by reputation, and occupying the market with price. Facing new and old customers, we have established a complete after-sales service network system, and our products are exported to large, medium and small cities in China and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City, 32 kilometers away from Hangzhou Xiaoshan International Airport and 2 kilometers away from the exit of HangJinQu Highway (Diankou, Ciwu). The transportation is convenient and the environment is beautiful. We sincerely welcome people of insight from all walks of life to visit, cooperate and develop together.

Polyethylene Pipe Butt Welder SHT200-2/4(A) For Construction Works  3

Our service:


1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
