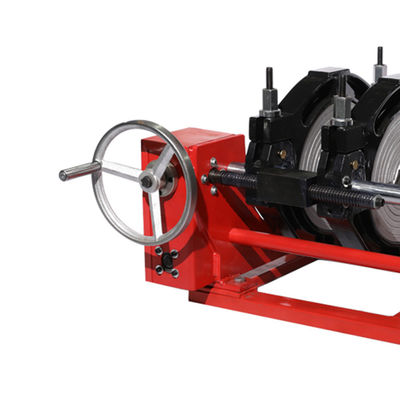

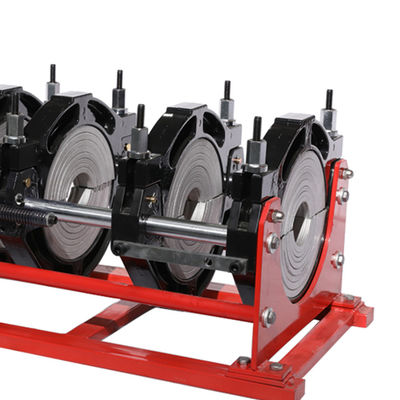

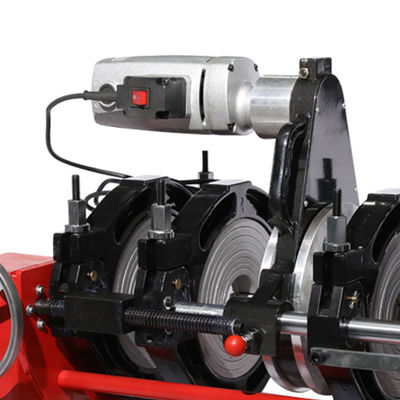

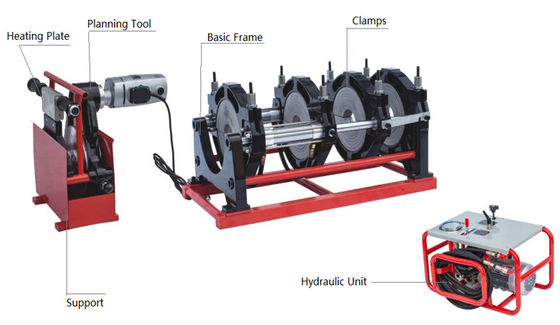

High Pressure Outlet Hdpe Butt Fusion Welding Machine 63mm - 200mm SHT200-2/4(A)

High Pressure Outlet Great Quality Hdpe Butt Fusion Welding Machine 63mm-200mm Hdpe Welding Machine SHT200-2/4(A)

The machine is operated by 220v±10%, 50Hz, if extended wire should be used, it should have enough lead section according to its length.The machine is used to weld pipes made from PE, PP, PVDF and cannot be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in.Standalone dual channel timer can record both of heat and cooling hours, when timing is over, the timer will give an alarm.Grasp the door handle when lifting the heating plate. Do not disconnect the switching power supply of the heating plate

Butt Fushion Welding Machine Technical data:


Other name:

High pressure Outlet great quality hdpe butt fusion welding machine 63mm-1200mm hdpe welding machine SHT200-2/4(A)

Features:

A more user-friendly function of "temperature compensation" is added, and the welding machine can automatically adjust the welding time according to the ambient temperature detected by the built-in temperature sensor. Changeable welding position brings more convenience while welding various fittings.


Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine
1. Before operation, all equipment parts shall be placed on a stable and dry place.
2. Confirm that the power supply used meets the requirements of the equipment, the equipment is in good condition, and the electrical circuit is not damaged; the detection indicator works normally, the milling cutter blade is sharp, and the parts and operating tools are complete.
3. Replace the required fixture according to the outer diameter of the welded pipe.

Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine




Application


Company profile
Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in the production of various specifications of PPR hot melt machines (plastic pipe fusion welders), scissors, butt welders, and pressure test pumps. Since the establishment of the factory, our factory have always paid great attention to the research and development of new products and the training of professional and technical staff, and we are constantly exploring and innovating, and introducing advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous praise from the industry. Our factory adheres to the principle of honesty, friendliness, mutual benefit, and the business tenet of surviving on quality, development by reputation, and occupying the market with price. Facing new and old customers, we have established a complete after-sales service network system, and our products are exported to large, medium and small cities in China and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City, 32 kilometers away from Hangzhou Xiaoshan International Airport and 2 kilometers away from the exit of HangJinQu Highway (Diankou, Ciwu). The transportation is convenient and the environment is beautiful. We sincerely welcome people of insight from all walks of life to visit, cooperate and develop together.



Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
