Product Details:
|
| Product Name: | Portable 90-250MM Plastic Fusion Welder Hydraulic Ppr Pipe Welding Machine Hdpe Butt Fusi SHT450-SHY For Energy & Mining | Pipe Size: | 280, 315, 355, 400, 450 |
|---|---|---|---|
| Heating Plate Max. Temp: | 270℃ | Total Power: | 9.1 Kw |
| Weight: | 181kg | Frame Packing: | 1210*890*970mm |
| Heating Plate Packing: | 810*680*1160mm | Control Box Packing: | 700*530*500mm |
| G.W./N.W.:: | 400 Kgs | Heating Plate Power: | 6.5 Kw |
Portable 90-250MM Plastic Fusion Welder Hydraulic Ppr Pipe Welding Machine Hdpe Butt Fusi SHT450-SHY for Energy & Mining
90 355 hdpe pe pipe jointing welding equipment hot joint machine

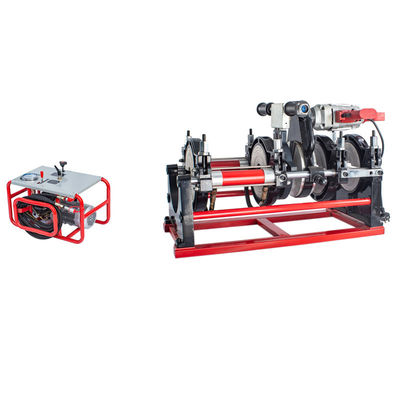

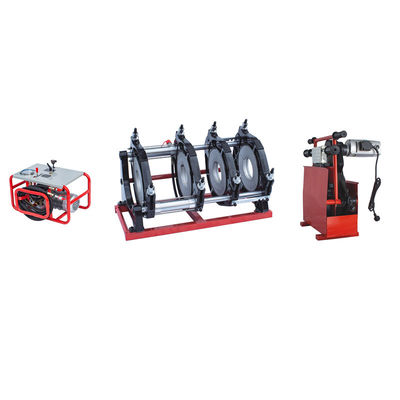

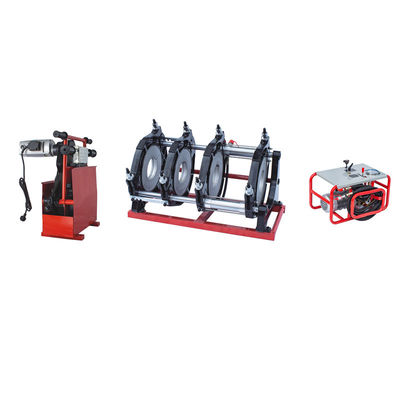

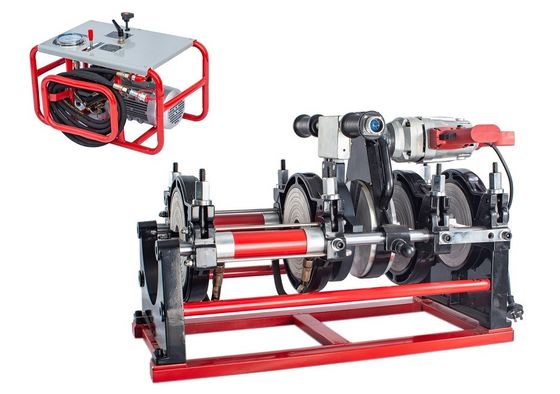

When our hydraulic butt fusion welding machine together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Butt Fushion Welding Machine Technical data:
| SHT450 -SHY |
Working Range | |
| Caliber (mm) | 280, 315, 355, 400, 450 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 6.5 Kw | |
| Power of Heating plate: | 1.5 Kw | |
| Hydraulic unit power | 1.1 Kw | |
| Total power | 9.1 Kw | |
| G.W./N.W.: | 400 Kgs | |
| Packing size: | 121*89*97cm | |
| 81*68*116cm | ||
| 70*53*50cm |
Can plastic pipe be welded?
Welding Applications: Plastic pipe welding can be performed with the use of heat or it can be performed through use of a chemical solvent, depending on the type of plastics being fused. With heat, a plastic is softened to make it pliable.
What type of plastic Cannot be welded?
Image result
There are two types of plastics – thermosets and thermoplastics. Thermosets is a type of plastic that cannot be welded because they can't be re-molded or reheated after the plastic is initially formed. In other words, once they are formed, even if they are exposed to heat again, they are no longer affected by the heat.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
