Product Details:
|
| Product Name: | Hydrostatic Hydraulic Fusion Machine SHT800-SHY Manufactures | Pipe Size: | 630, 710, 800 |
|---|---|---|---|
| Heating Plate Max. Temp: | 270℃ | Total Power: | 16.2 Kw |
| Weight: | 181kg | Frame Packing: | 1900*1360*1400mm |
| Heating Plate Packing: | 1100*720*1620mm | Control Box Packing: | 790*560*510mm |
| G.W./N.W.:: | 1200 Kgs | Heating Plate Power: | 12.5 Kw |
| High Light: | hydrostatic hydraulic fusion machine,710mm hydraulic fusion machine,1100*720*1620 mm hydraulic fusion machine |
||

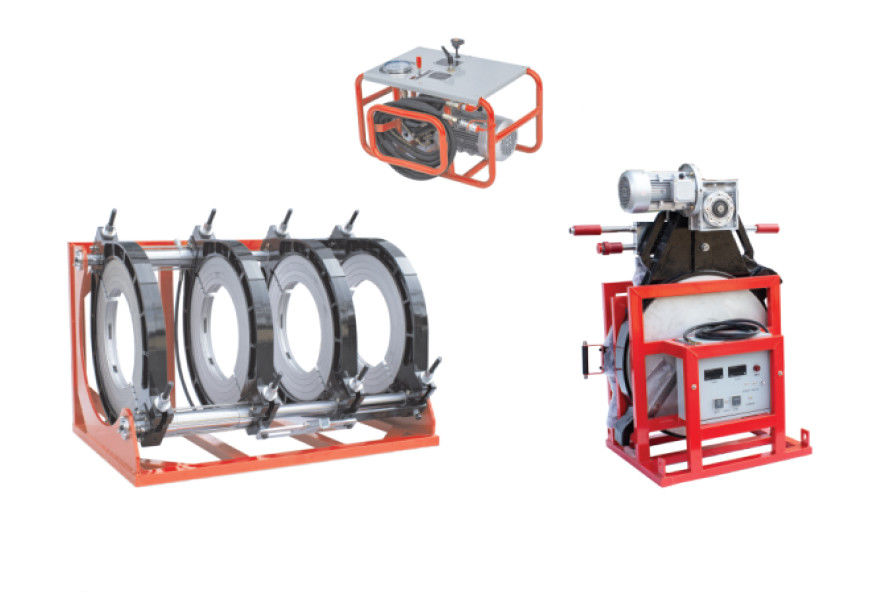

hydrostatic hydraulic fusion machine SHT800-SHY manufactures
Raise the pressure to the specified welding pressure, lock the fixing bolts on both sides of the frame, and keep the pressure for natural cooling. Reduce the pressure to the contact pressure and continue heating for the specified time.
Butt Fushion Welding Machine Technical data:
| SHT800 -SHY |
Working Range | |
| Caliber (mm) | 630, 710, 800 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 12.5 Kw | |
| Power of Heating plate: | 2.2 Kw | |
| Hydraulic unit power | 1.5 Kw | |
| Total power | 16.2 Kw | |
| G.W./N.W.: | 1200 Kgs | |
| Packing size: | 190*136*140cm | |
| 110*72*162cm | ||
| 79*56*51cm |
Service
HAITAO not only supplies reliable, durable and professional tools but we also aim to provide an excellent service to installers.
We offer a range of spare parts available for many products.
If you require spare parts.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
