Product Details:
|
| Product Name: | Hydrostatic Hydraulic Butt Welding Machine SHT800-SHY Manufactures | Pipe Size: | 630, 710, 800 |
|---|---|---|---|
| Heating Plate Max. Temp: | 270℃ | Total Power: | 16.2 Kw |
| Weight: | 181kg | Frame Packing: | 1900*1360*1400mm |
| Heating Plate Packing: | 1100*720*1620mm | Control Box Packing: | 790*560*510mm |
| G.W./N.W.:: | 1200 Kgs | Heating Plate Power: | 12.5 Kw |
| High Light: | 630mm Hydraulic Butt Welding Machine,Hydraulic Butt Fusion Welding Machine Hydrostatic,Hydraulic 1.5 Kw Butt Fusion Welding Machine |
||

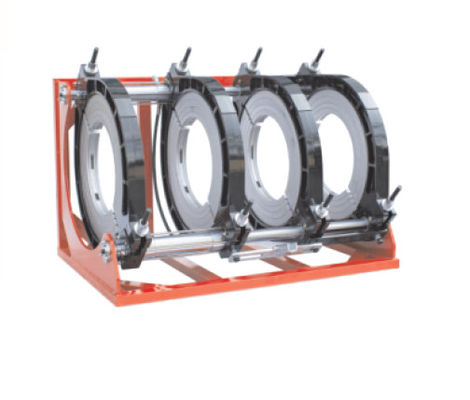

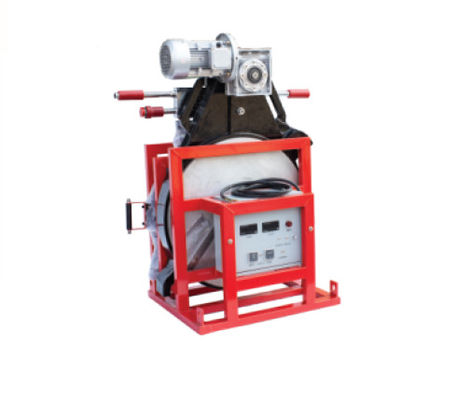

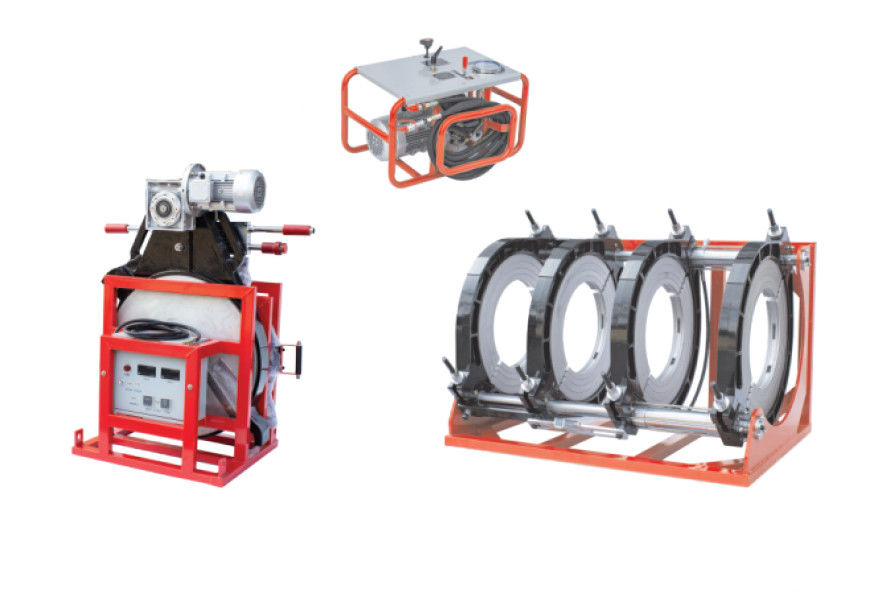

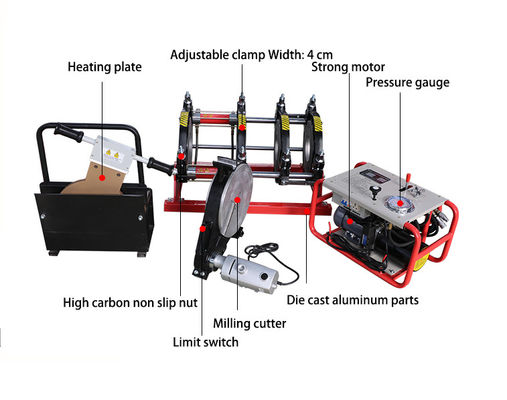

hydrostatic hydraulic butt welding machine SHT800-SHY manufactures
When the time is up, withdraw the movable frame, quickly take out the heating plate, and then close the two pipe ends, with the time interval as short as possible.After cooling for the specified time, the fixing bolt is fully opened. Loosen the slip and take out the connected pipe.
Butt Fushion Welding Machine Technical data:
| SHT800 -SHY |
Working Range | |
| Caliber (mm) | 630, 710, 800 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 12.5 Kw | |
| Power of Heating plate: | 2.2 Kw | |

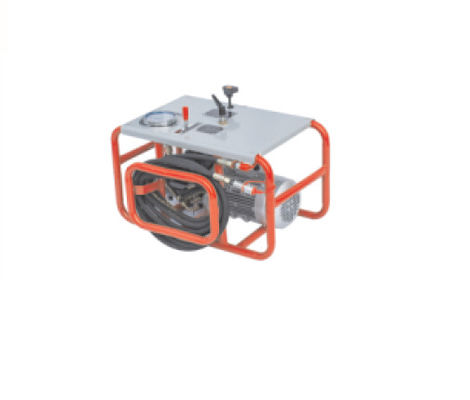

| Hydraulic unit power | 1.5 Kw | |
| Total power | 16.2 Kw | |
| G.W./N.W.: | 1200 Kgs | |
| Packing size: | 190*136*140cm | |
| 110*72*162cm | ||
| 79*56*51cm |
Service
HAITAO not only supplies reliable, durable and professional tools but we also aim to provide an excellent service to installers.
We offer a range of spare parts available for many products.
If you require spare parts.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
