Product Details:
|
| Product Name: | Hydrostatic Automatic Butt Fusion Machine Equipment Welding Plastic Pipe SHT800-SHY Manufactures | Pipe Size: | 630, 710, 800 |
|---|---|---|---|
| Heating Plate Max. Temp: | 270℃ | Total Power: | 16.2 Kw |
| Weight: | 181kg | Frame Packing: | 1900*1360*1400mm |
| Heating Plate Packing: | 1100*720*1620mm | Control Box Packing: | 790*560*510mm |
| G.W./N.W.:: | 1200 Kgs | Heating Plate Power: | 12.5 Kw |
| High Light: | Hydrostatic Automatic Butt Fusion Equipment,Welding Plastic Pipe Butt Fusion Equipment,1200 Kgs Butt Fusion Equipment |
||
hydrostatic automatic butt fusion machine equipment welding plastic pipe SHT800-SHY manufactures

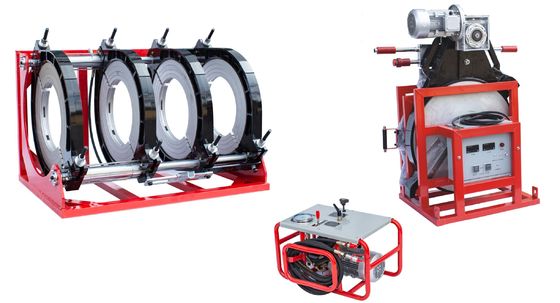

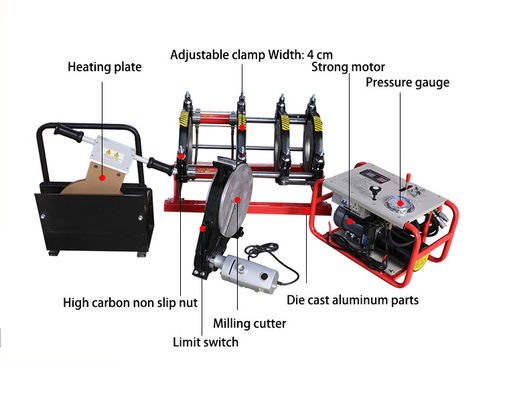

This hydraulic butt fusion welding machine is able to weld pipes and fittings with material pe pipe, hdpe pipe, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Butt Fushion Welding Machine Technical data:
| SHT800 -SHY |
Working Range | |
| Caliber (mm) | 630, 710, 800 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 12.5 Kw | |
| Power of Heating plate: | 2.2 Kw | |
| Hydraulic unit power | 1.5 Kw | |
| Total power | 16.2 Kw | |
| G.W./N.W.: | 1200 Kgs | |
| Packing size: | 190*136*140cm | |
| 110*72*162cm | ||
| 79*56*51cm |
Service
HAITAO not only supplies reliable, durable and professional tools but we also aim to provide an excellent service to installers.
We offer a range of spare parts available for many products.
If you require spare parts.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
