Product Details:
|
| Product Name: | Hydrostatic Top Quality Automatic HDPE Pe Pipe Automatic Butt Fusion Welding Machine SHT800-SHY Manufactures | Pipe Size: | 630, 710, 800 |
|---|---|---|---|
| Heating Plate Max. Temp: | 270℃ | Total Power: | 16.2 Kw |
| Weight: | 181kg | Frame Packing: | 1900*1360*1400mm |
| Heating Plate Packing: | 1100*720*1620mm | Control Box Packing: | 790*560*510mm |
| G.W./N.W.:: | 1200 Kgs | Heating Plate Power: | 12.5 Kw |
| High Light: | Automatic Hydrostatic Butt Fusion Welding Machine,Pe Pipe Butt Fusion Machine,1.5 Kw Butt Fusion Welding Machine |
||

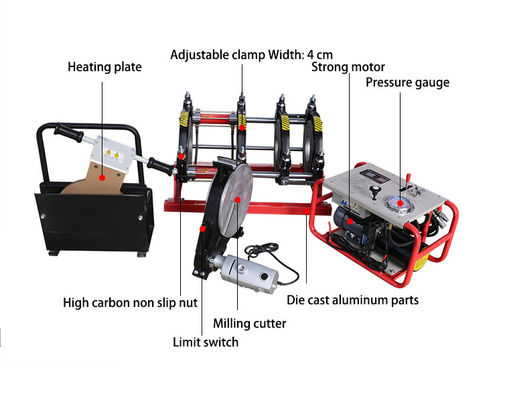

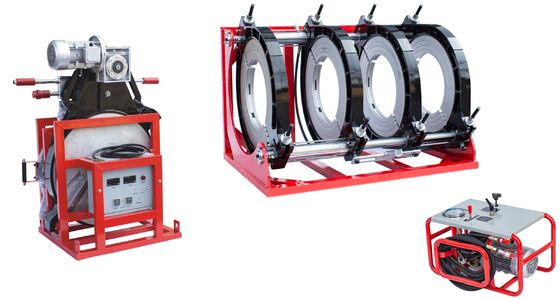

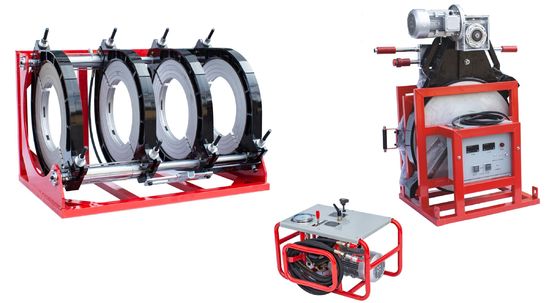

hydrostatic Top quality automatic HDPE pe pipe Automatic Butt Fusion Welding Machine SHT800-SHY manufactures
When our hydraulic butt fusion welding machine together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. If the depth of the scar exceeds 10% of the wall thickness of the pipe, it should be partially removed before use.
Butt Fushion Welding Machine Technical data:
| SHT800 -SHY |
Working Range | |
| Caliber (mm) | 630, 710, 800 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 12.5 Kw | |
| Power of Heating plate: | 2.2 Kw | |

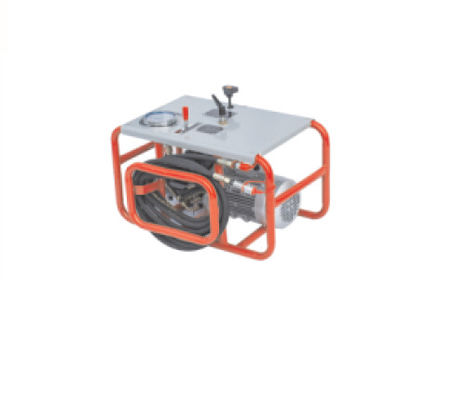

| Hydraulic unit power | 1.5 Kw | |
| Total power | 16.2 Kw | |
| G.W./N.W.: | 1200 Kgs | |
| Packing size: | 190*136*140cm | |
| 110*72*162cm | ||
| 79*56*51cm |
Service
HAITAO not only supplies reliable, durable and professional tools but we also aim to provide an excellent service to installers.
We offer a range of spare parts available for many products.
If you require spare parts.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
