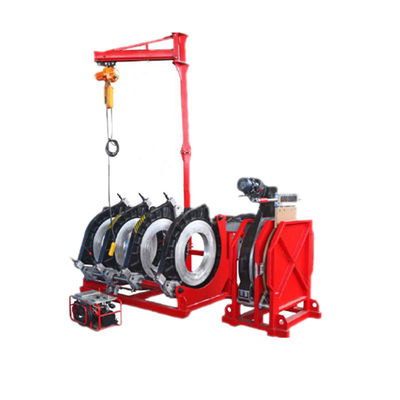

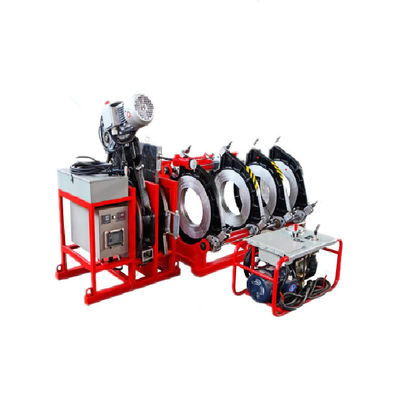

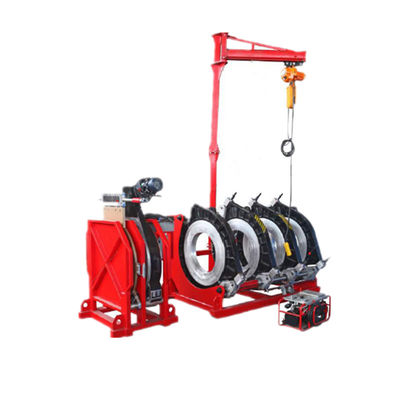

Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY

Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY
Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY

Large Image :  Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: HTXG
Certification: ISO9001
Model Number: SHT1200-SHY
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: POLYWOOD
Delivery Time: ONE MONTH
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/momth

Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY

Description
Product Name: Manual Top Quality Manufacture Full Hydraulic Butt Fusion Welding Machine Pe Butt Fusion Wilding Ma SHT1200-SHY For Sale Pipe Size: 1000, 1100, 1200
Heating Plate Max. Temp: 270℃ Total Power: 16.2 Kw
Weight: 181kg Frame Packing: 2580*1600*1750mm
Heating Plate Packing: 1330*950*1880mm Control Box Packing: 790*580*520mm
G.W./N.W.:: 3200 Kgs Heating Plate Power: 25 Kw
High Light:

full hydraulic butt fusion welding machine

,

Pe Ma butt fusion welding machine

,

181 kg butt fusion welding machine

Manual Top quality manufacture full hydraulic butt fusion welding machine pe butt fusion wilding ma SHT1200-SHY for sale



Close the two pipe ends and check the alignment of both ends. The misalignment at both ends of the pipe should not exceed 10% of the wall thickness, which can be improved by adjusting the straightness and the elastic slip of the pipe;.The part outside the frame of the pipe shall be supported by supports to reduce friction, and then be fastened with slips.


Butt Fushion Welding Machine Technical data:

SHT1200
-SHY
Working Range
Caliber (mm) 1000, 1100, 1200
Heating board max temp. 270 °C
Temperature bias “+/-5°
Pressure adjustment range 0-10Mpa
Heating plate power 25 Kw
Power of Heating plate: 3 Kw
Hydraulic unit power 2.2 Kw
Total power 16.2 Kw
G.W./N.W.: 3200 Kgs
Packing size: 258*160*175cm
133*95*188cm
79*58*52cm





In addition to providing high-quality products, our company is also actively engaged in collaborative marketing involving our customers. We are committed to fulfilling the needs of production sites through tools and ideas from around the world.


Full Hydraulic Butt Fusion Welding Machine Pe Ma SHT1200-SHY 0

Our service:

1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
